Teledyne LeCroy Motor Drive Power Analyzer Software

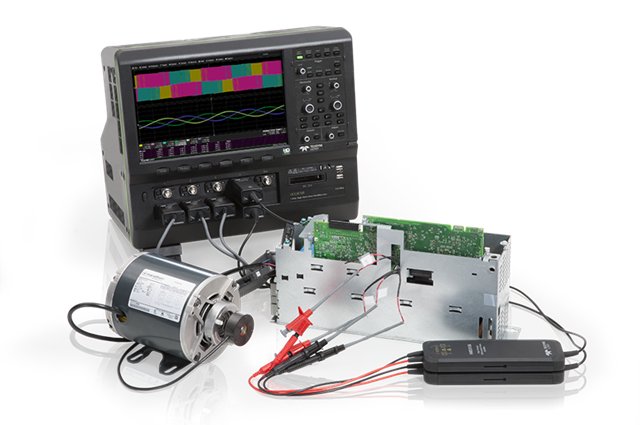

Complete Motor Drive System
Debug and Validation in
One Instrument
Three-Phase Power Measurements;
Real, Apparent, Reactive Power
Efficiency Measurements
User-Configurable Power Table
Two- and Three-Wattmeter Methods
Supported
Per-Cycle Time-Correlated
Waveforms From Power Values
Dynamic Drive Response Analysis,
From Startup To Overload
Standard Line-Line To Line-Neutral
Voltage Conversion
1000 VRMS Isolation with
HVD Series Differential Probes

Numeric Power Table

User-configurable for various voltage, current and power parameters. Up to 120 values total may be displayed at one time.

Graphical User Interface

An intuitive, graphical user interface provides setup/connection guidance. Setup capability is provided for any combination of single-phase or three-phase drive input/output.

Most Complete Motor Mechanical Integration

Simple integration is provided for nearly any type of speed, rotation or position sensor, including analog and digital (pulse) tachometers, Brushless DC (BLDC) Hall sensor, Quadrature Encoder Interface (QEI), and Resolvers.

Detailed Waveforms

A waveform showing any per-cycle measurement parameter variation can be displayed by simply selecting a table value. This makes it simple to correlate complex drive behaviors to other control or power system waveforms, and to debug drive system problems.

Dynamic Drive Response

Long acquisition memory (250 Mpts) permits complete understanding of dynamic drive behaviors, such as startup, application of load, or fast changing load conditions, and correlation of drive response problems to control system instructions or power section failures.
