OVERVIEW

3-Phase 4-Wire Power Quality Analyzer Compliant to IEC61000-4-30 Class A Standards with Dynamic 1300V Range, Harmonic and Inter-harmonics Analysis Capabilities

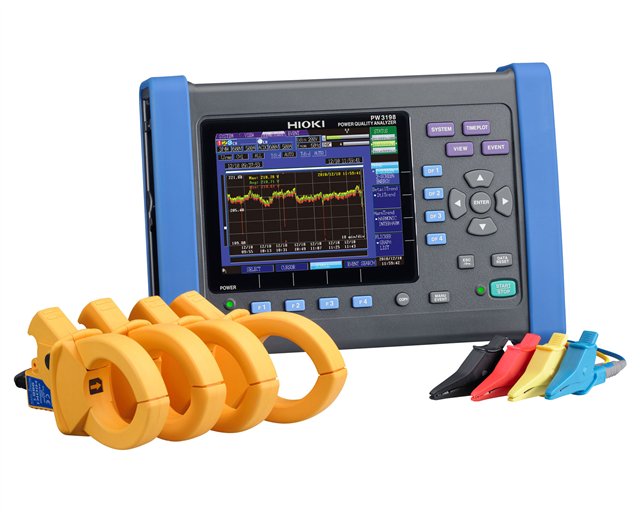

Hioki portable power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW3198 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues.

• PW3198 (main unit only)
• PW3198-90 (PW3198 PQA bundled with the PQA-HiView Pro 9624-50)

• Verify power problems in accordance with the IEC61000-4-30 Class A standard
• High Accuracy and continuous gapless recording (V:±0.1% of nominal voltage, A and W:±0.2% rdg. ±0.1% f.s.)
• CAT IV 600V - safe enough for incoming power lines
• Broadband voltage range lets you measure even high-order harmonic components of up to 80 kHz
• Wide dynamic range from low voltages up to 1300V (3P4W line-to-line voltage)
• Maximum 6000V transient overvoltage up to 700kHz
• LAN, USB and SD card interfaces
• Optional GPS BOX for synchronizing multiple devices
